Teaching a Small Model to Write Flutter UI Code with RL
A pipeline using GRPO + CLIP rewards to improve screenshot-to-Flutter code generation with Qwen3-VL-8B, trained on a single A100 for under $50.

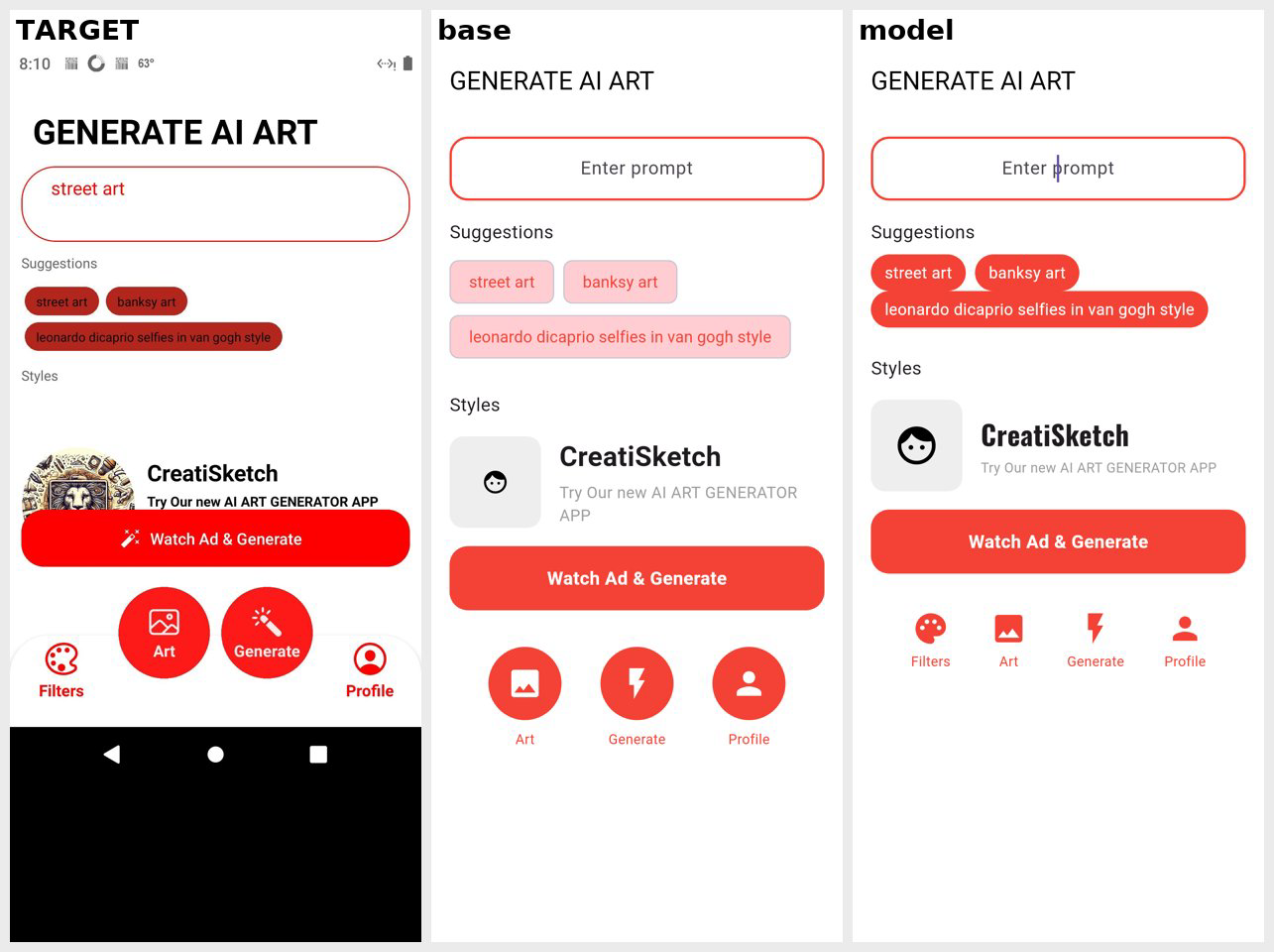

A pipeline that takes a mobile UI screenshot as input and generates Flutter widget code that visually recreates it — trained with reinforcement learning on a single A100 GPU for under $50.
Two measurable objectives:
- Render success rate — does the generated code compile and render without errors?
- Visual similarity — does the rendered output look like the original screenshot?
Method
Base Model: Qwen3-VL-8B-Instruct with QLoRA fine-tuning — 4-bit NF4 quantization reduces ~18GB weights to ~5GB, with a LoRA adapter of ~175M trainable parameters (~1.95% of total). Only the adapter is updated; the base model stays frozen.
Reward Design — verifiable rewards based on deterministic signals, no LLM judge in the training loop:

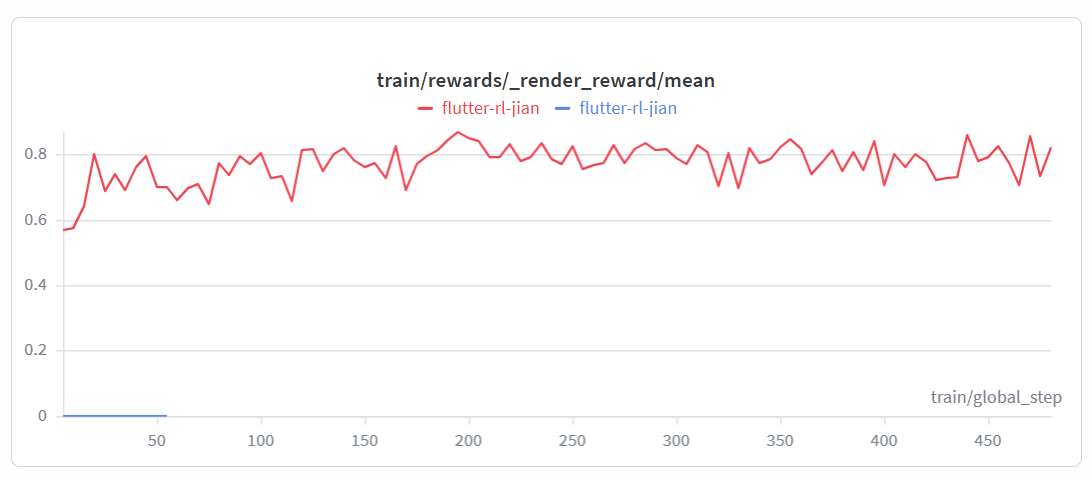

- Visual similarity (weight 0.8): render generated code via Flutter’s golden test framework → compute CLIP cosine similarity against the original screenshot
- Format check (weight 0.2): regex-based verification of imports, class definition, and
build()method structure
Training Algorithm: GRPO (Group Relative Policy Optimization) via HuggingFace TRL — samples G=4 completions per prompt, updates the model to prefer completions above the group average. No separate value model required.
Key hyperparameters: num_generations: 4, kl_beta: 0.1, lora_rank: 64, lora_alpha: 128, max_completion_length: 2048. Trained directly with GRPO without SFT warm-up, hence the higher KL penalty.
Dataset: 160 easy-difficulty mobile UI screenshots from a real-world app dataset; eval set of 100 screens across easy/medium/hard difficulties.
Results
| Checkpoint | Render Rate | CLIP Similarity | Combined Score |
|---|---|---|---|
| Base model | 64.0% | 0.548 | 0.638 |
| checkpoint-400 | 64.0% | 0.549 | 0.639 |
| checkpoint-480 (final) | 67.0% | 0.576 | 0.661 |
Structured UI patterns improved significantly:
| Screen Type | Render Δ | CLIP Δ |
|---|---|---|
| menu | +25.0pp | +0.221 |
| login | +16.7pp | +0.148 |
| list | +11.1pp | +0.091 |
| modal | +9.1pp | +0.086 |
| form | -10.0pp | -0.087 |

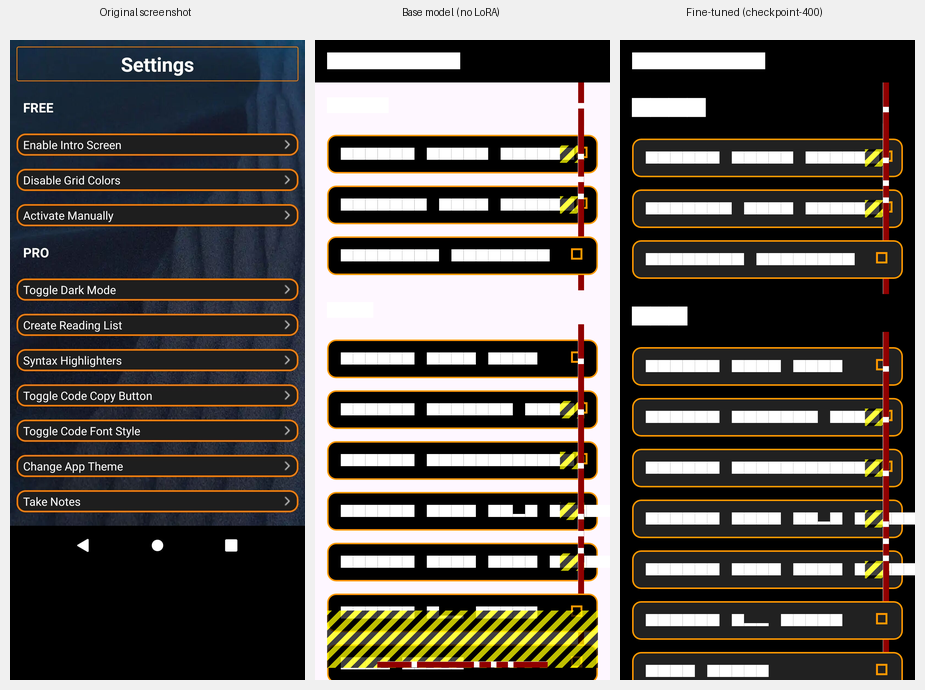

Key finding: training only on easy samples improved hard-difficulty screens at checkpoint-400 (+20pp render rate, +0.169 CLIP), suggesting the model learned generalizable Flutter code structure rather than memorizing easy patterns.
Infrastructure
| Component | Choice | Cost |
|---|---|---|
| GPU | RunPod A100 SXM 80GB | $1.49/hr |
| Training time | ~10 hours | ~$15 |
| Total spend | ~$20–25 |
Lessons Learned
Verifiable rewards are worth the engineering cost — no API costs, fast iteration, and reward signals that can’t be gamed by surface-level pattern matching.
CLIP as a reward is surprisingly effective — even without pixel-perfect matching, CLIP similarity pushes the model toward outputs that capture layout structure, color scheme, and component hierarchy.
Cold-start GRPO works, but needs a higher KL penalty — kl_beta: 0.1 (vs typical 0.04 post-SFT) kept training stable without a warm-up stage.
