Reinforcement Learning — From Reward-Penalty Rules to Q-Learning

In reinforcement learning (RL), an agent receives a reward of \(+1\) for a correct output and a penalty of \(-1\) for an incorrect output. RL tasks can be categorized into non-associative tasks and associative tasks — most practical discussions focus on associative tasks. The ultimate goal is to maximize the cumulative expected reward obtained by the model.

---

Reward-Penalty Rule

The reward-penalty rule governs how weights are updated based on feedback:

\[\delta w_{mn} = \alpha \begin{cases} [y_m - \tanh(\beta b_m)]x_n & \text{for } r = +1 \\ -\delta[y_m + \tanh(\beta b_m)]x_n & \text{for } r = -1 \end{cases}\]

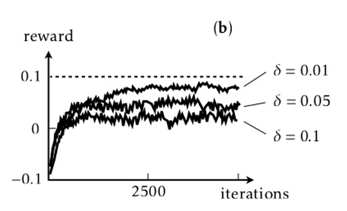

Here \(\delta\) denotes the penalty coefficient. A smaller penalty yields closer convergence to the theoretical optimal reward. When the model performs correctly, a large reward is applied; when it errors, only a minimal correction is made. This design ensures that the network strongly follows positive feedback — analogous to reinforcement concepts in psychology. In the formula, \(\delta\) adjusts the weights in the opposite direction of \(y_m\).

Note: For the reward function to converge, the input dimension must exceed the number of samples.

---

Temporal Difference (TD) Learning

Summing all actual future rewards directly is impractical in engineering because it requires completing an entire episode to compute all subsequent rewards. Instead, we define the value estimation function:

\[O(\mathbf{s}_t) = \mathbf{w} \cdot \mathbf{s}_t \tag{11.13}\]

Where \(O(\mathbf{s}_t)\) is the model’s estimate of the expected cumulative future reward for state \(\mathbf{s}_t\). We define a squared error loss function \(H\) over the sequence:

\[H = \frac{1}{2}\sum_{t=0}^{T-1}[R_t - O(\mathbf{s}_t)]^2 \tag{11.14}\]

Taking the gradient to update the weights yields:

\[\delta w_m = \alpha \sum_{t=0}^{T-1}[R_t - O(\mathbf{s}_t)]\frac{\partial O}{\partial w_m} \tag{11.15}\]

The prediction error can be mathematically rewritten by decomposing the target into successive time steps:

\[R_t - O(\mathbf{s}_t) = \sum_{\tau=t}^{T-1}[r_{\tau+1} + O(\mathbf{s}_{\tau+1}) - O(\mathbf{s}_\tau)] \tag{11.16}\] \[\delta \mathbf{w} = \alpha \sum_{t=0}^{T-1}\sum_{\tau=t}^{T-1}[r_{\tau+1} + O(\mathbf{s}_{\tau+1}) - O(\mathbf{s}_\tau)]\mathbf{s}_t \tag{11.17}\]

The term \(r_{\tau+1} + O(\mathbf{s}_{\tau+1}) - O(\mathbf{s}_\tau)\) is the TD error.

---

TD(λ) — Eligibility Traces

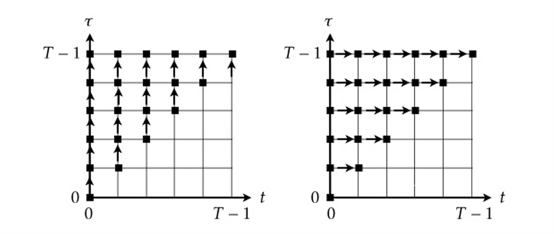

Equation (11.17) requires knowing future states during the summation. To make this computationally feasible, mathematicians altered the summation order. Instead of computing forward from \(t=0\) at the end of an episode, the lookback mechanism calculates incrementally at each current step by updating an eligibility trace of past steps.

This reformulation leads to the \(\text{TD}(\lambda)\) weight update rule:

\[\delta \mathbf{w} = \alpha \sum_{t=0}^{T-1}[r_{t+1} + O(\mathbf{s}_{t+1}) - O(\mathbf{s}_t)]\sum_{\tau=0}^{t}\lambda^{t-\tau}\mathbf{s}_\tau \tag{11.19}\]

By updating weights online at each individual time step:

\[\delta \mathbf{w}_t = \alpha[r_{t+1} + O(\mathbf{w}_t, \mathbf{s}_{t+1}) - O(\mathbf{w}_t, \mathbf{s}_t)]\sum_{\tau=0}^{t}\lambda^{t-\tau}\mathbf{s}_\tau \tag{11.20}\]

The parameter \(\lambda\) is the discount tracking factor for past states \((0 \le \lambda \le 1)\). If \(\lambda = 0.5\), the influence of states further in the past decays exponentially. If \(\lambda = 0\), the algorithm becomes TD(0) — updating based solely on the immediate next state transition. TD(0) is widely applied in robotic training and control.

---

SARSA and Q-Learning

In the TD(0) framework, value estimation is coupled with a policy through the Q-function \(Q(\mathbf{s}, \mathbf{a})\):

\[Q_{t+1}(\mathbf{s}_t, \mathbf{a}_t) = Q_t(\mathbf{s}_t, \mathbf{a}_t) + \alpha_t [r_{t+1} + \gamma Q_t(\mathbf{s}_{t+1}, \mathbf{a}_{t+1}) - Q_t(\mathbf{s}_t, \mathbf{a}_t)] \tag{11.23}\]

Equation (11.23) is the update rule for SARSA, an on-policy TD algorithm that evaluates the Q-table using the actual next action \(\mathbf{a}_{t+1}\) chosen by the current policy.

Closely related is Q-learning, an off-policy algorithm where the update uses the maximum potential reward of the next state \(\max_{\mathbf{a}} Q_t(\mathbf{s}_{t+1}, \mathbf{a})\), independent of the policy’s actual next choice.

These value-based TD methods serve as the foundational principles for game-playing strategies — from Tic-Tac-Toe all the way up to value-network architectures in Deep RL systems like AlphaGo.
